Firmware analysis is a fascinating area within the vast world of reverse engineering, although not very extended. Sometimes you end up in an impasse until noticing a minor (or major) detail you initially overlooked. That’s why sharing methods and findings is a great way to advance into this field.
There are a few things here worth mentioning:

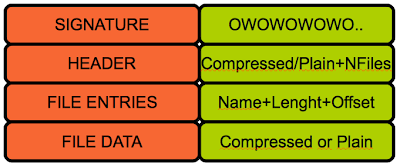

- The header is not necessarily 12 but 8 so the third field seems optional.
- The first 4 bytes look like a flag field that may indicate, among other things, whether a file data will be compressed or not (1 = Compressed, 2 = Plain)

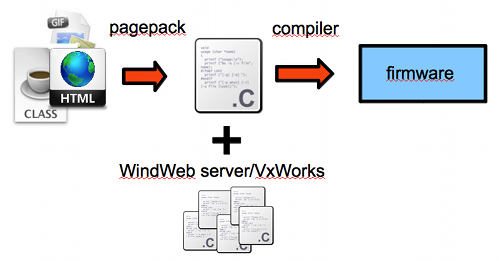

- The signature can vary between firmwares since it is defined by the constant ‘HTTP_UNIQUE_SIGNATURE’ , in fact, we may find this signature twice inside a firmware; the first one due to the .h where it is defined (close to other strings such as the webserver banner )and the second one already as part of the MemFS.
